Automatic Laser Welding Systems With Flexible Modules
Simass is a heavy-duty modular welding base unit engineered to serve as the structural foundation for high-precision laser welding applications. Designed for seamless compatibility with Sigma Laser’s systems, it offers configurable motion axes, robust mechanical stability, and integration-ready controls — making it the ideal platform for both manual and automated industrial welding setups.
Introduction – What is Simass?
Simass is a modular welding base unit designed to serve as the foundation for precision laser welding systems. Built for seamless integration with Sigma Laser products like the Sidanus and Sirius series, Simass delivers unmatched mechanical stability, precise axis control, and a future-proof platform for custom automation.
Its heavy-duty construction, smooth motion rails, and flexible configuration options make it the ideal core module for both manual and automated welding setups. Whether you’re welding small medical components or large industrial tools, Simass provides the stability, accuracy, and modularity required for consistently high-quality results.
Built with industrial-grade materials and engineered for adaptability,
The Simass Base Unit delivers the precision and load-bearing capacity required for laser welding applications across sectors such as tooling, medical manufacturing, and automotive engineering.
Below is a breakdown of its technical features, including customizable axis configurations, structural dimensions, and integration capabilities — all designed to ensure seamless performance and long-term stability in high-demand production environments.
| Feature | Specification |
|---|---|
| Base Structure | Steel-reinforced frame with vibration damping legs |
| Motion Axes | Configurable: X / Y / Z axes (manual or motorized) |
| Axis Travel (X/Y) | Customizable (typically 200–800 mm per axis) |
| Z-axis Motion | Optional motorized vertical travel, 200–400 mm |
| Table Load Capacity | Up to 250 kg |
| Mounting Interface | Universal mounting for Sigma Laser heads and accessories |
| Dimensions | Approx. 800 × 600 mm footprint (customizable) |
| Control Integration | Compatible with Sigomatic & Sigomatic Pro systems |
| Cooling Requirements | Passive; no integrated cooling |
Simass is designed as a universal base platform that integrates effortlessly with Sigma Laser’s most advanced welding systems. Whether you’re working with Sidanus, Sineo, or other specialized configurations, Simass provides a stable, modular laser welding foundation that adapts to your production scale, automation level, and welding needs.
Easily combine with rotating units, slide modules, or fibre laser systems to build a tailored welding station for your industrial requirements.
Category |
Product |
Compatible |
Notes |
Laser Welding Systems |
✅ Yes |
Direct mechanical and control integration supported |
|
✅ Yes |
Compact setup with extended reach via Simass |
||
✅ Yes |
Stable platform for manual or semi-auto use |
||
✅ Yes |
Ideal pairing for fibre laser with motorized axes |
||
✅ Yes |
Supports full 4-axis fibre system with Sigomatic Pro |
||
Motion Add-ons |
✅ Yes |
Can be mounted on Simass for C-axis rotation |
|
✅ Yes |
Adds long X-axis motion capability to Simass setup |
||
✅ Yes |
Motorized vertical motion for height control |
||
✅ Yes |
Can be mounted for side-access motion |
||
Software & Control |
✅ Yes |
Standard manual/semi-automated control |
|
✅ Yes |
G-code support, automation workflows, diagnostics |
||
Accessories |
HD Camera System |
✅ Optional |
For visual monitoring; mounts to Simass-compatible heads |
Laser Safety Enclosure |
✅ Optional |
Custom enclosure sizes available for Simass footprint |
|
Custom Fixtures |
✅ Yes |
T-slot and mounting interfaces support user-defined tooling |
The Simass Base Unit is 100% compatible with all current Sigma Laser systems, motion modules, and software platforms. It is the ideal foundation for building modular, scalable, and future-proof welding setups.
A Versatile Foundation for Precision Welding Across Industries
The Simass Base Unit is engineered to adapt to diverse production environments and workflows. Its configurable motion system, robust frame, and compatibility with both manual and automated laser heads make it an ideal foundation across multiple industries where high-precision welding is essential.
Medical Device Manufacturing
In cleanroom and controlled environments, Simass enables exact positioning and fine motion control needed for welding surgical tools, implants, or diagnostic device components — all with minimal heat impact and high repeatability.
read more about Laser Welding application in Medical Device Manufacturing
Tool and Mold Maintenance
Simass offers a rigid, vibration-dampened platform perfect for precision repair and fabrication of tools and injection molds. With its stable axis control, technicians can perform micro-welding, edge restoration, and deep cavity access reliably.
read more about Laser Solutions for Precision Tool and Moulding Industry
Research & Prototyping
Whether in a research institute or an in-house innovation lab, Simass serves as a modular workstation for testing new materials, laser paths, or fixtures. Its scalable architecture makes it ideal for prototyping and low-volume experimental work.

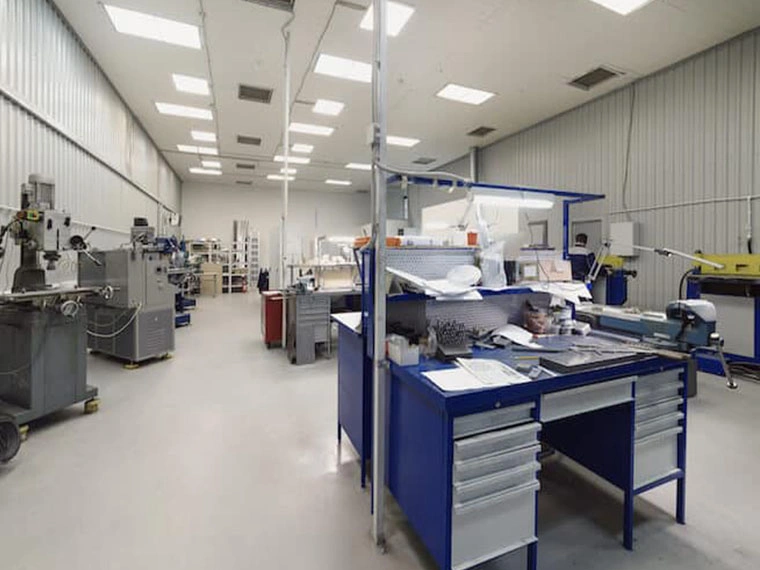

Small-Scale Production & Assembly
For manufacturers who require precision without full-scale automation, Simass supports semi-automated welding stations with repeatable positioning and fast setup changes — reducing downtime and increasing consistency.
Aerospace Industry
Aerospace components often demand tight tolerances and clean seams. Simass supports stable welding setups for titanium brackets, jet engine parts, or sensor assemblies, helping meet industry certification standards.
read more about Advanced Laser Welding Solutions for Aerospace Industry
Jewellery & Precision Craftsmanship
In precision industries such as jewellery making, watch component fabrication, or dental prosthetics, Simass provides the stable, vibration-free base required for delicate laser welding. Combined with high-magnification optics and fine axis control, it enables operators to join micro-components with minimal distortion, even in gold, platinum, or titanium. The modular setup also allows integration with tilt or rotary units for complex geometries.
read more about Precision Laser Welding Solutions for Jewellery Manufacturing
Built to Fit Your Workflow – Flexible Configurations for Every Welding Challenge
The Simass Base Unit is more than a static support frame — it’s a modular, adaptable platform engineered to evolve with your production needs. Whether you’re scaling up automation, handling larger components, or integrating new motion modules, Simass offers a range of customization options to optimize precision, efficiency, and usability.
Key Customization Features
1. Motion System Configuration
Choose between manual or motorized axis control for X, Y, and Z axes. Travel ranges can be customized (e.g., 200 mm, 400 mm, 800 mm) to match the size of your parts and workspace.
2. Modular Integration
Simass is designed for seamless integration with:

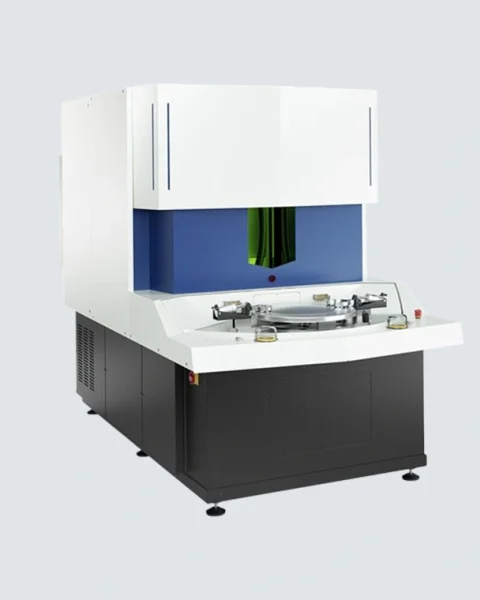

- Simass Rotate for rotational axis welding

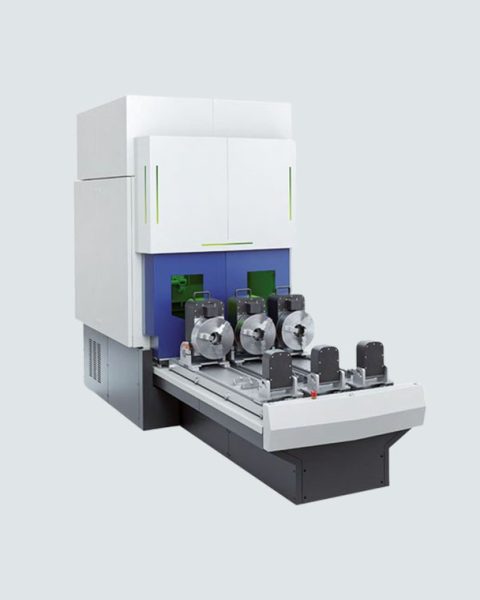

- Simass Slide for extended horizontal travel
- Additional tilting or rotary head modules for multi-axis flexibility
3. Mounting & Interface Customization
Adapt the mounting plate or fixtures to your specific welding head — whether it’s a Sigma laser module, a custom head, or a third-party system.
4. Control System Compatibility
Integrate with Sigomatic or upgrade to Sigomatic Pro for:
- G-code programming
- Process monitoring
- Multi-user access control
- CNC-style movement profiles
5. Platform Dimensions
Adjust the table size and height to fit your facility layout. Choose from a variety of tabletop surfaces including stainless steel, T-slot aluminum, or vibration-isolated steel.
6. Safety Options
Enhance workplace safety with optional features like:
- Protective enclosures (Class 1 laser compliance)
- Light barriers or safety interlocks
- Emergency stop systems
Whether you’re working in a prototyping lab or a high-throughput manufacturing line, Simass can be configured to match your specific requirements — delivering uncompromising performance and total integration freedom.
Answers to common questions about the Simass Base laser welding Unit
Simass serves as the structural foundation for precision laser welding systems. It provides a stable, vibration-free platform for integrating welding heads, rotary or slide modules, and automation systems.
Yes. Simass is designed to support manual, semi-automated, and fully automated setups, making it a flexible choice for evolving production needs.
Simass supports both options. You can configure it with manual positioning for small-scale work or add motorized axes (X/Y/Z) for repeatability and integration with CNC or Sigomatic Pro systems.
The welding table can handle components up to 250 kg, making it suitable for both delicate parts and heavy-duty industrial workpieces.
Simass is fully compatible with Sidanus, Sirius, and other modular products like Simass Rotate and Simass Slide. It can also be adapted for future Sigma product lines thanks to its universal mounting system.
No. Simass itself is passively cooled and does not require an integrated or external cooling unit. However, cooling requirements may depend on the laser head or automation module installed.
Learn How to Get the Most Out of Your Simass Base Unit
Explore our curated collection of guides and tutorials designed to help you set up, operate, and enhance your Simass-based laser welding workstation. These resources support both beginners and advanced users, covering technical setup, configuration tips, and integration workflows.
-
How to Configure Axis Travel Lengths for the Simass Base Unit
Learn how to select and adjust the optimal X/Y/Z travel for your part size and welding requirements. -
Simass vs. Conventional Workbenches – Which Is Right for Laser Welding?
Compare precision, stability, and expandability in laser welding environments. -
Step-by-Step Guide to Integrating Simass with Sigomatic Pro
A practical tutorial for linking your Simass unit to advanced control systems with programmable logic. -
Best Practices for Mounting Welding Heads on the Simass Platform
Learn how to properly align and secure your laser head to ensure accuracy and repeatability. -
How to Expand Simass with Rotate and Slide Modules
A modular upgrade guide that explains how to install and configure rotational or sliding axes. -
Laser Safety and Workspace Planning with Simass Systems
Understand how to plan your welding cell for Class 1 compliance and ergonomic efficiency.
At Sigma Laser, our commitment to excellence doesn’t end at delivery. The Simass Base Unit comes with a full suite of after-sales services designed to ensure optimal performance, operator confidence, and long-term value from your investment. Whether you’re a small workshop or a multinational manufacturer, our support ecosystem keeps your production running smoothly.
Performance Optimization Consulting
For customers with high-throughput needs or complex applications, we offer:
- Process auditing
- Automation optimization
- Custom software macros
- Fixture design and integration consulting
Installation & Commissioning
Our team provides on-site setup, system calibration, and full integration into your existing workspace or automation line. We ensure everything is optimized from day one — including safety checks, software configuration, and trial welds.
Spare Parts & Consumables
We maintain a well-stocked inventory of Replacement lamps, Optical components, Cooling units and Wear parts. Fast shipping worldwide ensures minimal downtime.
Remote Diagnostics & Global Support
From preventive maintenance to rapid troubleshooting, our global service team keeps your laser welding equipment running with minimal downtime through on‑site visits and secure remote diagnostics.
Operator Training & System Onboarding
Hands‑on training programs give your staff the skills to operate, maintain, and optimize Sigma laser welding systems safely and productively right from day one.
Extended Warranty & Lamp Breakage Protection
Enjoy long‑term peace of mind with comprehensive warranty coverage—including exclusive lamp break protection—for all light‑pumped laser welding systems.
Keep Your Simass Base Unit Running Smoothly – With Minimal Downtime
Proper maintenance of your Simass Base Unit ensures long-term precision, stability, and safety during laser welding operations. While Simass is designed to be low-maintenance and durable, routine checks and cleaning help preserve alignment accuracy, mechanical smoothness, and operator safety.
Below you’ll find a categorized maintenance guide that helps both production teams and technicians plan preventive care.
Daily Maintenance Tasks
-
Wipe Down Table Surfaces
Use a soft, lint-free cloth to remove dust, debris, and splatter from the working area. -
Check Axis Movement
Manually move each axis (if manual) or jog via control interface (if motorized) to ensure smooth travel. -
Tighten Quick-Access Fasteners
Visually inspect clamps, screws, and locking knobs for looseness. -
Inspect Air Vents
If the unit includes electronic components, ensure all cooling vents are free from blockage.
Weekly Maintenance Checklist
-
Lubricate Linear Guides and Bearings
Apply precision-grade lubricant to guide rails for smooth, resistance-free motion. -
Check for Table Leveling
Use a bubble level or digital tool to verify the working surface is flat and aligned. -
Visual Inspection of Motion Axes
Check for signs of wear, bending, or mechanical stress on slides, rails, or motor mounts. -
Review Safety Markings and Labels
Ensure all safety stickers and warnings are intact and legible.
Monthly Maintenance Tasks
-
Inspect Mounting Interfaces
Review and re-tighten bolts or plates where laser heads or accessories are mounted. -
Test Axis Repeatability (if motorized)
Use basic calibration tools to test whether axis motion is still repeatable within tolerance. -
Check Emergency Stops / Interlocks
Test any connected emergency stop circuits or light curtains (if present).
Long-Term Preventive Maintenance (Quarterly or Semi-Annual)
-
Disassemble and Deep Clean Axis Components
Remove covers and inspect internal mechanical elements; clean and re-lubricate. -
Inspect for Magnetized Dust or Metal Debris
Especially if working with fine alloys, use a magnetic tool to check for metal particle buildup. -
Recalibrate Fixtures and Tooling Points
Validate that part-holding fixtures and coordinate references remain accurate.
Pro Maintenance Tips
-
Avoid Compressed Air Blasts
Use vacuum or electrostatic wipes instead of compressed air, which can push dust into bearings. -
Store Lubricants and Cleaners Properly
Keep all chemicals in labeled, sealed containers to avoid evaporation or contamination. -
Use a Dedicated Maintenance Log
Log all adjustments, incidents, and parts replacements in a central document for traceability. -
Partner with Sigma Support
Schedule annual service visits or remote diagnostics via Sigma technical support to prolong system life.
The Simass Base Unit is engineered for durability and precision — but like any high-performance industrial platform, routine maintenance is key to ensuring long-term reliability and accuracy. By following this structured care plan, your team can minimize downtime, reduce wear, and keep every weld aligned to perfection.
Ensuring Operator Safety with Every Weld – Guidelines for Using Simass Responsibly
Although the Simass Base Unit itself does not emit laser radiation, it forms the structural foundation for laser welding systems and often supports high-power laser heads, automation modules, and moving parts. Therefore, observing strict safety practices around Simass is essential to ensure operator well-being, equipment longevity, and compliance with international safety standards.
Here’s how to ensure safe daily use of the system:
Laser Safety Classification
Simass itself is non-emissive but is commonly used in Class 1 and Class 4 laser environments. The safety level of the overall welding setup depends on the connected laser head and whether safety enclosures or interlocks are in place.
- Recommended: Operate Simass within a Class 1 safety enclosure for maximum protection.
- Minimum Requirement: Ensure line-of-sight is shielded when used with open (Class 4) laser configurations.
Personal Protective Equipment (PPE)
- While sigma laser’s welding systems are enclosed, use of laser-rated safety glasses (wavelength 1064 nm) is advised during setup or service with open panels.
- Gloves and protective clothing may be required when handling sharp, hot, or heavy workpieces.
| Task | Recommended PPE |
|---|---|
| Routine operation | No PPE required under closed housing |
| Maintenance (open casing) | Laser safety goggles (1064 nm rated) |
| Welding setup adjustments | Safety gloves, protective sleeves |
| Handling heavy components | Safety shoes, cut-resistant gloves |
| Optical cleaning or inspection | Anti-static gloves and lens-safe cloths |
Workspace Safety Requirements
- Ensure that the system is installed in a ventilated, dry, and stable area with proper clearance on all sides.
Install on a level, vibration-free surface to ensure axis stability.
- Avoid stacking materials around the enclosure that could block access or cooling airflow.
Avoid clutter around the system to allow proper access to emergency stop and power cut-off.
Ensure all users are aware of the Class 1 safety zone boundaries.
Place proper safety signage indicating laser equipment in use.
Electrical & Cooling System Safety
- Power supply should be 3-phase 380V, grounded properly.
- Only trained personnel should access internal components or electrical cabinets.
- Use only approved coolant fluids in the cooling system to prevent corrosion or leaks.
Use only Sigma-certified coolant; regularly check coolant levels and look for leaks.
Never run the laser if coolant is low or the system indicates temperature warnings.
Keep all power cables secured and free from obstruction or wear.
Software & Control Warnings
- The Sigomatic interface is equipped with real-time alerts for:
- Overheating
- Water level drop
- Lamp fault
- Interlock failures
- Never bypass safety interlocks or override alarms.
Emergency Procedures
- An emergency stop button is located on the front control panel. All motors and laser output halt instantly when pressed.
- Keep a Class C fire extinguisher nearby for electrical incidents.
- Ensure all staff are briefed on emergency shutdown and evacuation procedures.
Power Cutoff: Located on the back panel — disconnects the full system from power.
In case of accidental exposure or incident, stop operation immediately and report to safety supervisor.
Training & Access Control
- Only trained personnel should operate or maintain the machine.
- Use login access levels on the Sigomatic interface to restrict advanced settings to supervisors or engineers.
- Display safety signage around the unit to maintain operator awareness.
Safety Summary
The Simass Base Unit, when integrated into a laser welding system, demands a proactive approach to safety. By combining proper training, protective equipment, and workspace design, you can ensure a safe and productive welding environment for your entire team.
When it comes to building a laser welding system, the foundation matters just as much as the laser itself. The Simass Base Unit stands apart from generic industrial worktables and welding benches by offering modularity, stability, expandability, and long-term reliability — all designed specifically for high-precision laser applications.
Engineered for Laser Welding
Unlike standard workbenches, Simass is purpose-built for laser welding precision. It minimizes vibration, ensures alignment accuracy, and supports automated motion — enabling consistent weld quality across parts.
Modular & Future-Ready
Simass grows with your production. From simple manual setups to advanced multi-axis systems, it can be upgraded with Simass Rotate, Simass Slide, and full Sigomatic Pro control, future-proofing your investment.
Seamless System Integration
Designed by Sigma for Sigma systems — Simass works natively with Sidanus, Sirius, and other welding heads, reducing setup time and ensuring perfect compatibility with your existing equipment.
Operator-Centric Design
With features like adjustable working height, optional safety enclosures, and a clean cable management layout, Simass is optimized for operator safety, comfort, and productivity — even during long shifts.
Lower Total Cost of Ownership
Durable construction, minimal maintenance needs, and cross-platform compatibility mean reduced downtime, fewer upgrade costs, and higher ROI over time.
Whether you’re launching a new production line or modernizing your existing welding setup, Simass gives you the solid, scalable foundation you need to deliver results today — and adapt to what comes next.
