Product Category: Light-pumped Laser Systems

Why Choose Our Light-Pumped Laser Welding Solutions?

• German-engineered performance with long-term stability
• Compact footprint for benchtop or modular integration
• Minimal thermal distortion, even on reflective or thin metals
• User-friendly interfaces, compatible with automation (CNC-ready)
• Low maintenance with long lamp and component lifetimes

🔗 Request a Demo or Quote

Experience the precision and reliability of our light-pumped laser welding systems. Contact us today to schedule a demo or request a customized quote for your production needs.

contact us

📞 +49 (0) 6109 715 973-0

What Are Light-Pumped Systems?

Light-pumped systems, especially in the context of laser welding, refer to solid-state laser systems where a laser-active medium (often a crystal like Nd:YAG) is optically excited (“pumped”) by light, typically from flashlamps or laser diodes.

These systems are used in precision welding, marking, and material processing due to their high energy density and focusability.

Key Features (based on Sigma Laser’s offerings):

1. High Pulse Energy & Precision

• Ideal for fine and micro-welding tasks.
• Short pulses deliver intense, localized energy.

2. Nd:YAG Laser Technology

• Solid-state crystal laser, flashlamp-pumped.
• Wavelength: 1064 nm (suitable for metals).

3. Manual & CNC Versions Available

• For job shops and production environments.
• Integration into automated systems is possible.

4. Cooling Systems

• Air or water cooling, depending on power class.
• Stable operation even in continuous use.

5. Long Lifetime

• Solid design with minimal maintenance.
• Lamp lifetime typically 1–3 million pulses.

Applications:

Sector	Application Example
Jewelry	Welding chains, clasps, frames
Medical	Welding titanium or stainless steel tools
Electronics	Micro-welding of sensors, contacts, housings
Aerospace	Small part repair, joining complex alloys
Toolmaking	Mold repair, precision welding of steel

Advantages:

• No contact with the material → minimal distortion.
• Repeatability & Consistency.
• High-quality, oxidation-free welds.
• Compact systems, often benchtop or easily integrable.
• Energy-efficient vs traditional TIG/MIG welding.

Considerations & Challenges:

• Initial cost may be higher than conventional welding.
• Safety (laser radiation, fumes): must follow Class 4 laser guidelines.
• Skill requirement: Trained operators improve quality and safety.
• Maintenance: Lamp and optics replacement over time.

Compared to Fiber Lasers:

Feature	Light-Pumped (Nd:YAG)	Fiber Laser
Pump source	Flashlamp or diode	Diode via optical fiber
Beam delivery	Rigid arm or fiber	Flexible fiber-optic cable
Efficiency	Medium	High
Maintenance	More frequent	Low
Cost	Moderate	Higher upfront (but lower upkeep)

Sigma Laser Product Examples:

Some Sigma products in this category include:

• Sigma LSW Series – manual laser welding stations.
• Sigma CNC-Weld – automated welding platforms.
• Sigma LaserStar / CompactLine – compact, benchtop solutions.

🔗 Further Exploration:

• Product Page (Light-Pumped Systems)
• Applications Overview
• Sigma YouTube Channel – For demonstrations.

Light-Pumped Laser Welding Systems

Light-pumped laser welding systems are a category of solid-state laser machines used for precision welding applications. These systems utilize a laser-active medium—commonly neodymium-doped yttrium aluminum garnet (Nd:YAG)—which is optically pumped by a light source, such as a flashlamp or laser diode. Light-pumped systems are widely used in industrial settings for fine and micro-welding tasks across various materials and components.

Principle of Operation

Light-pumped systems function by exciting a laser medium using intense light, typically from a flashlamp. The excited medium then emits a coherent laser beam, usually at a wavelength of 1064 nanometers, which can be precisely focused onto a small area of a workpiece.

This concentrated energy melts the surface material, enabling localized fusion without the need for physical contact or filler material. The result is a clean, narrow weld with minimal thermal distortion.

System Components

A typical light-pumped laser welding system consists of:

• Laser resonator containing the Nd:YAG rod
• Pump source (flashlamp or diode)
• Cooling system (air or water cooled)
• Beam delivery system (optical arm or fiber)
• Control interface (manual or CNC-integrated)

Applications

Light-pumped laser welding systems are used across numerous industries where high precision and material integrity are critical. Typical applications include:

• Jewelry manufacturing – Welding of chains, frames, and clasps
• Medical devices – Joining of titanium and stainless steel components
• Electronics – Micro-welding of sensor housings and contacts
• Toolmaking and mold repair – Precision welds on steel molds and dies
• Aerospace and automotive – Small-scale welding and repair of alloy parts

Advantages

Light-pumped systems offer several benefits:

• Non-contact welding with minimal mechanical stress
• High pulse energy for deep, precise welds
• Oxidation-free joints, even without shielding gas
• Repeatability suitable for production environments
• Compatibility with CNC automation

Limitations

Despite their benefits, these systems have some drawbacks:

• Higher initial cost than traditional welding equipment
• Maintenance requirements such as lamp and optic replacement
• Safety considerations due to laser radiation (Class 4 safety rating)
• Operator training required for optimal performance

Comparison with Fiber Lasers

Feature	Light-Pumped (Nd:YAG)	Fiber Laser
Pumping method	Flashlamp or diode	Diode-pumped via fiber
Beam delivery	Optical arm or fiber	Flexible fiber-optic cable
Electrical efficiency	Moderate	High
Maintenance frequency	Higher	Lower
Cooling requirements	Moderate to high	Low to moderate
Application focus	Welding, repair, precision	Cutting, welding, marking

Industry Example: Sigma Laser GmbH

One notable manufacturer of light-pumped laser welding systems is Sigma Laser GmbH, a German company specializing in industrial laser technology. Sigma’s product line includes:

• LSW Series – Manual laser welding systems for workshops and small production.
• CNC-Weld – Automated platforms for programmable precision welding.
• CompactLine – Space-saving benchtop systems for high-precision tasks.

Sigma Laser systems are used worldwide in manufacturing, maintenance, and precision engineering sectors.

See Also

• Nd:YAG laser
• Fiber laser
• Laser welding
• Solid-state lasers
• Industrial laser applications

Light-Pumped Laser Welding Systems – High-Precision Nd:YAG Welding Solutions:: customer object handling section

Reliable, Powerful, and Designed for Precision Welding

Discover our advanced light-pumped laser welding systems, engineered for demanding industrial applications requiring high precision, deep penetration, and minimal distortion. Powered by Nd:YAG crystal technology and flashlamp-pumped energy sources, our systems deliver exceptional results for fine and micro-welding tasks.

Whether you operate in jewelry manufacturing, medical device production, or mold and tool repair, our light-pumped laser systems ensure clean, repeatable welds with minimal post-processing.

Key Features of Our Light-Pumped Systems:

• Nd:YAG Laser Technology (1064 nm wavelength) for precision metal welding
• Flashlamp-Pumped Power Source for high pulse energy and reliability
• Air or Water Cooling Options to suit different production scales
• Manual and CNC Models for flexibility in small batch or automated environments
• Oxidation-Free Welding – no need for shielding gas in most cases

Applications Across Industries

Our light-pumped welding systems are trusted across a range of industries:

• 💎 Jewelry – Spot welding chains, clasps, and delicate parts
• 🏥 Medical – Joining titanium, stainless steel, and micro components
• 🔧 Toolmaking – Mold repair, cavity rework, and edge restoration
• 🖥️ Electronics – Contact welding and sensor integration
• ✈️ Aerospace & Automotive – Repair and precision welding of alloy parts

Why Choose Our Light-Pumped Laser Welding Solutions?

• German-engineered performance with long-term stability
• Compact footprint for benchtop or modular integration
• Minimal thermal distortion, even on reflective or thin metals
• User-friendly interfaces, compatible with automation (CNC-ready)
• Low maintenance with long lamp and component lifetimes

🔗 Request a Demo or Quote

Experience the precision and reliability of our light-pumped laser welding systems. Contact us today to schedule a demo or request a customized quote for your production needs.

contact us

📞 +49 (0) 6109 715 973-0

Light-Pumped Laser Welding vs. Competing Technologies

Choosing the right welding system is critical for quality, efficiency, and cost-effectiveness. Here’s how light-pumped laser welding systems (Nd:YAG-based) compare with other popular technologies in today’s market:

Feature / System	Light-Pumped Laser (Nd:YAG)	Fiber Laser Welding	Diode Laser Welding	Traditional Welding (TIG/MIG)
Technology	Flashlamp-pumped Nd:YAG crystal	Diode-pumped fiber core	Direct diode laser modules	Electrical arc welding
Wavelength	1064 nm	1070–1080 nm	~915–980 nm	N/A
Precision	★★★★★	★★★★★	★★★★☆	★★☆☆☆
Material Compatibility	Metals (incl. reflective metals)	Broad metal range	Metals & plastics	Primarily metals
Spot Size & Focusability	Very fine	Extremely fine	Medium	Coarse
Heat Affected Zone (HAZ)	Minimal	Minimal	Slight	Large
Maintenance	Lamp & optics over time	Minimal	Low	Regular upkeep
System Cost (CapEx)	$$ (mid-range)	$$$ (high)	$$ (mid-range)	$ (low)
Energy Efficiency	Moderate	High	High	Low
Automation/CNC Integration	Available	Available	Available	Limited
Shielding Gas Requirement	Optional/Minimal	Often required	Often required	Required
Best For	Precision repair, small parts	High-speed industrial welding	Hybrid applications	Heavy-duty general welding

Why Light-Pumped Nd:YAG Systems Are Still Relevant

While fiber lasers dominate in high-speed automation and cutting, light-pumped systems are still preferred for:

• 💍 Jewelry and watch welding
• 🛠️ Mold and tool repair
• 🧪 Laboratory and prototyping setups
• 🧵 Delicate, low-volume production with high precision

These systems offer an ideal balance between affordability, power, and precision, especially in sectors where thermal control and localized welding are critical.

⚖️ Verdict: Choosing the Right System

Scenario	Best Choice
High-speed automated welding	Fiber Laser
Cost-sensitive precision repair	Light-Pumped (Nd:YAG)
Plastic or hybrid welding	Diode Laser
Large part or structural welding	MIG/TIG Traditional Welding

📌 Need Help Choosing?

Our experts can guide you in selecting the most efficient system for your materials, production volume, and budget. Contact us for a free consultation or technical comparison.

📩 [Talk to a Laser Expert] +49 (0) 6109 715 973-0

Operator Quick Guide – Light-Pumped Laser Welding System (with Sigomatic)

Welcome to your Sigma Laser Light-Pumped Welding System! This guide will help you get started, stay safe, and operate your machine efficiently with SIGOMATIC™ control software.

🔹 Getting Started

1. Power On

• Turn on the main switch on the back panel.
• Wait for the system to boot and the SIGOMATIC interface to load.

2. Prepare the Workspace

• Ensure the workpiece is clean and clamped.
• Wear proper safety equipment (laser safety glasses, gloves).

3. Select Welding Program

• On the SIGOMATIC screen, tap “Programs”.
• Choose a saved preset (e.g., “Steel 1mm Spot Weld”) or create a new one.

4. Adjust Laser Parameters (if needed)

• Power (Joules)
• Pulse Duration (ms)
• Repetition Rate (Hz)
• Focus Position

5. Set Position

• Use joystick or CNC controls to move the laser head to the target point.

6. Run a Test Pulse

• Use the “Test” button to fire a pulse on a scrap piece.
• Fine-tune parameters as needed.

7. Begin Welding

• Press “Start” or foot pedal.
• Observe the weld through the safety screen.

Safety Tips

• Always wear laser safety goggles (1064 nm protection).
• Do not open covers during operation.
• Use fume extraction in closed areas.
• Do not look directly at reflected light or the weld spot.

Basic Maintenance

Task	Frequency	Instructions
Clean lens	Daily	Use lint-free cloth & lens cleaner
Replace flashlamp	As needed (1M+ pulses)	Call technician or follow service guide
Check cooling	Weekly	Inspect coolant level (if water cooled)
Software update	As notified	USB or remote via SIGOMATIC settings

❓ Frequently Asked Questions (FAQ)

Q1: Can I weld different metals with the same settings?
A: No. Always use presets or adjust settings for each material (e.g., gold, steel, titanium).

Q2: What if the weld is too shallow or weak?
A: Increase pulse energy or duration. Make sure focus is set correctly.

Q3: SIGOMATIC won’t start. What should I do?
A: Check power supply, emergency stop, and interlocks. Restart the system.

Q4: Can I use this system with a rotary table or CNC arm?
A: Yes. SIGOMATIC supports external motion control – ask your admin or integrator.

Q5: Is internet connection required?
A: Not for normal use. It’s needed only for remote diagnostics or updates.

Q6: Can I save my own welding programs?
A: Yes! Tap “Save As” after adjusting settings, and give it a name like “Aluminum_Thin”.

📞 Support

• 📧 Email:support@sigmalaser.com
• 📞 Phone: +49 (0) 6109 715 973-0

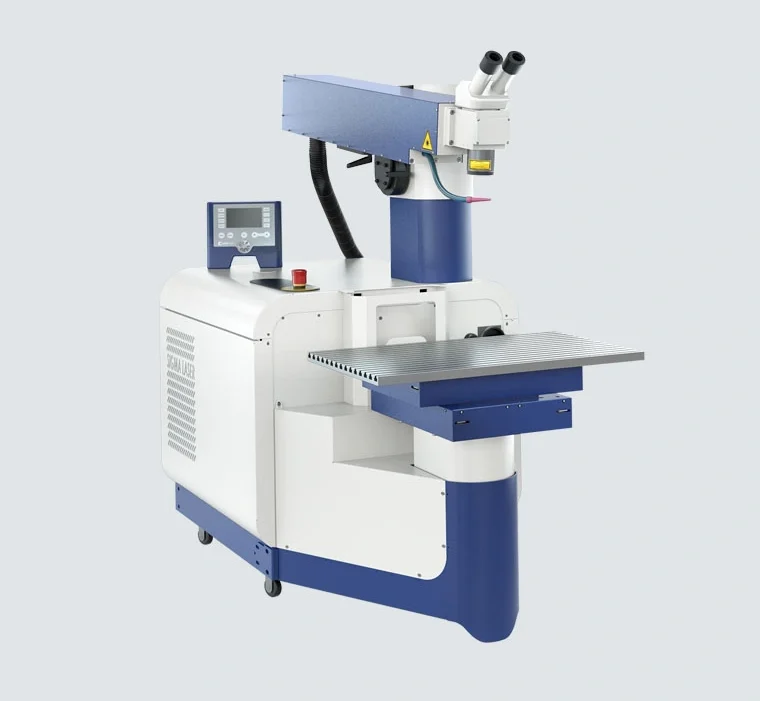

SIDANUS LIGHT Laser Welding Systems

SIDANUS LIGHT is a series of compact, light-pumped laser welding systems developed by Sigma Laser GmbH. These systems offer laser output powers ranging from 60 to 500 watts, providing versatile solutions for precise and efficient laser welding across various industrial applications.

Overview

The SIDANUS LIGHT series is designed for high precision welding tasks where space-saving and user-friendly operation are priorities. Utilizing Nd:YAG laser technology with flashlamp pumping, SIDANUS LIGHT systems generate short, high-energy laser pulses with excellent beam quality, suitable for delicate welding operations on metals and alloys.

These systems are widely used in sectors requiring minimal heat input and precise welds, such as jewelry manufacturing, medical device fabrication, electronics, and small parts repair.

Technical Specifications

• Laser Type: Flashlamp-pumped Nd:YAG solid-state laser
• Output Power: 60 to 500 Watts
• Pulse Duration: Adjustable in microsecond range for application-specific welding control
• Wavelength: 1064 nm (near-infrared)
• Pulse Frequency: Typically up to several hundred Hz, depending on model and configuration
• Cooling: Water-cooled laser head with integrated cooling system for stable operation
• Beam Delivery: Flexible optical arm or fiber delivery options to adapt to production environments
• Control: Manual operation with optional CNC or automation interfaces available

Key Features

• Compact Design: The SIDANUS LIGHT systems have a small footprint, suitable for benchtop setups and integration into existing production lines.
• High Beam Quality: Ensures precise focusing for clean and narrow weld seams.
• User-Friendly Interface: Intuitive control panels and software allow easy setup and parameter adjustment.
• Versatility: Adjustable parameters enable welding of a wide range of metals including gold, silver, stainless steel, titanium, and more.
• Durability: Robust build quality and reliable components ensure long system lifetimes with minimal maintenance.
• Safety: Equipped with protective housings and interlocks conforming to laser safety standards.

Applications

The SIDANUS LIGHT series is optimized for applications requiring fine control and repeatability:

• Jewelry: Welding delicate parts such as chains, clasps, and settings without damaging the material.
• Medical Industry: Precision joining of surgical tools and implants.
• Electronics: Micro-welding of sensors, connectors, and housings with minimal thermal impact.
• Watchmaking: Assembly and repair of intricate components.
• Prototyping and Repair: Ideal for small-scale welding and refurbishment in toolmaking and mold industries.

Advantages of SIDANUS LIGHT Systems

• Energy Efficiency: High conversion efficiency reduces operating costs.
• Minimal Thermal Distortion: Precise pulsed laser output minimizes heat-affected zones, preserving material properties.
• Flexible Integration: Can be combined with robotic arms or CNC machines for automated welding processes.
• Fast Processing: High repetition rates allow rapid welding cycles in production environments.
• Low Maintenance: Flashlamp and optics designed for extended operating lifetimes with straightforward serviceability.

Comparison with Other Light-Pumped Systems

Compared to larger or higher-power light-pumped lasers, the SIDANUS LIGHT series offers a balance of power and compactness. Its output power range (60 – 500 W) makes it suitable for both delicate and moderately demanding welding tasks, while maintaining ease of use and integration flexibility.

Manufacturer: Sigma Laser GmbH

Sigma Laser GmbH, based in Germany, is a leader in developing light-pumped solid-state laser systems. The SIDANUS LIGHT series reflects Sigma’s expertise in delivering reliable, precision laser technology tailored to a broad spectrum of industrial welding applications.

SIDANUS LIGHT Laser Welding Systems — Precision Light-Pumped Nd:YAG Lasers (60 – 500 Watt) :: customer object handling section

Discover the SIDANUS LIGHT series by Sigma Laser, a compact and powerful range of light-pumped Nd:YAG laser welding systems with output powers from 60 to 500 watts. Engineered for high-precision welding, these systems deliver superior performance for industries requiring micro-welding, jewelry repair, medical device fabrication, and electronics assembly.

Why Choose SIDANUS LIGHT Laser Welding Systems?

• High-Quality Laser Output: Utilizing a flashlamp-pumped Nd:YAG crystal, SIDANUS LIGHT produces a stable 1064 nm laser beam with exceptional beam quality and precise pulse control.
• Compact & Space-Saving Design: Ideal for benchtop use or integration into automated production lines without sacrificing performance.
• Adjustable Power & Pulse Parameters: Fine-tune pulse duration, frequency, and energy for customized welding on a wide range of metals, including stainless steel, titanium, gold, and silver.
• Reliable Cooling & Safety: Water-cooled laser head ensures stable operation during extended use, while integrated safety features comply with industry laser safety standards.
• User-Friendly Operation: Intuitive interfaces simplify setup and welding process control, suitable for both manual and CNC-assisted workflows.

Applications of SIDANUS LIGHT Laser Welders

• Jewelry Manufacturing: Achieve precise, clean welds on delicate jewelry pieces such as chains, clasps, and fine settings.
• Medical Industry: Join surgical instruments and implants with minimal thermal impact to maintain biocompatibility.
• Electronics: Micro-weld sensor housings, connectors, and micro-components requiring fine control and repeatability.
• Watchmaking & Tool Repair: Perfect for detailed assembly and refurbishment of intricate components.

Benefits of Light-Pumped Nd:YAG Welding Systems

The SIDANUS LIGHT series combines high energy efficiency and low maintenance requirements to reduce operational costs and downtime. Its pulsed laser technology minimizes the heat-affected zone, preventing distortion and preserving material strength.

Integrate SIDANUS LIGHT Systems Into Your Production

Easily adaptable for automation, SIDANUS LIGHT laser welders can be integrated with robotic arms and CNC platforms, enabling fast, repeatable, and precise welding processes for small to medium-sized production runs.

Technical Specifications at a Glance

Specification	SIDANUS LIGHT Series
Laser Type	Flashlamp-pumped Nd:YAG
Output Power Range	60 – 500 Watts
Wavelength	1064 nm
Pulse Duration	Adjustable microseconds
Cooling System	Water-cooled laser head
Beam Delivery	Optical arm or fiber optic options
Control Interface	Manual and optional CNC control

Learn More About SIDANUS LIGHT Laser Welding Solutions

Visit the SIDANUS LIGHT product page to explore detailed specifications, request a quote, or schedule a demo with Sigma Laser’s expert team.

Keywords: SIDANUS LIGHT laser welder, light-pumped Nd:YAG laser, precision laser welding system, micro welding laser, jewelry laser welder, medical device laser welding, Sigma Laser welding systems, compact laser welding machine, laser welding 60 watt to 500 watt

SIDANUS LIGHT vs. Competing Light-Pumped Laser Welding Systems

When selecting a light-pumped Nd:YAG laser welding system, it’s important to compare features such as power range, beam quality, flexibility, and overall cost-effectiveness. Below is a detailed comparison between Sigma Laser’s SIDANUS LIGHT series and common competing units on the market:

Feature / Criteria	SIDANUS LIGHT (Sigma Laser)	Competing Systems
Power Range	60 – 500 Watts	Typically 50 – 400 Watts
Laser Technology	Flashlamp-pumped Nd:YAG	Flashlamp-pumped Nd:YAG or Diode-pumped
Beam Quality	High beam quality for precise micro-welding	Moderate to high, often less consistent
Pulse Control	Adjustable pulse duration & frequency	Limited pulse parameter flexibility
Cooling System	Integrated water cooling for stable output	Some models air-cooled or less efficient
System Footprint	Compact benchtop and modular integration	Larger units with limited integration options
User Interface	Intuitive, manual + CNC-compatible	Often less user-friendly or manual only
Maintenance & Reliability	Designed for long lamp life and easy servicing	Higher maintenance frequency reported
Automation Ready	Easily integrates with robotic & CNC systems	Limited automation support on some models
Safety Features	Comprehensive safety housings and interlocks	Basic or variable safety implementations
Price Range	Competitive pricing within mid to high segment	Varies; often higher for similar specs

Why Choose SIDANUS LIGHT Over Competitors?

• Wider power range (up to 500 W) accommodates more demanding welding tasks.
• Superior beam quality ensures finer welds and reduced heat-affected zones.
• Greater flexibility in pulse parameters allows tailoring to diverse materials.
• Compact design fits well in limited spaces and easily integrates into existing workflows.
• Robust build and lower maintenance reduce downtime and operational costs.
• Enhanced user experience with modern controls and automation compatibility.

Competing Brands & Models (Examples)

• Trumpf TruPulse Series (lower power flashlamp-pumped models)
• IPG Photonics Nd:YAG Welders (diode-pumped but often pricier)
• Han’s Laser Manual Nd:YAG Welders (similar tech but larger footprint)
• LaserStar (Coherent) Flashlamp-Pumped Units (well-known but costlier)

While competitors provide solid options, the SIDANUS LIGHT series strikes an optimal balance between power, precision, flexibility, and affordability, making it a preferred choice for precision welding in jewelry, medical, electronics, and toolmaking industries.

SIDANUS LIGHT vs Competing Laser Welding Systems

How Does the SIDANUS LIGHT Series Compare?

The SIDANUS LIGHT system, powered by flashlamp-pumped Nd:YAG technology, is built for users who demand high-pulse energy, versatility across metals, and seamless manual or automated operation. Here’s how it stacks up against competing technologies in the market:

Comparison Table

Feature / System	SIDANUS LIGHT (Nd:YAG)	Fiber Laser Welding	Direct Diode Laser	TIG/MIG Welding
Laser Type	Flashlamp-pumped Nd:YAG	Diode-pumped Fiber Core	Direct Diode	Electric Arc
Wavelength	1064 nm	1070–1080 nm	~915–980 nm	N/A
Power Range	60–500 W	200–2000 W	100–300 W	Variable
Precision Welding	★★★★★	★★★★★	★★★★☆	★★☆☆☆
Reflective Metal Compatibility	Excellent	Very Good	Moderate	Poor
Automation Support (CNC/Robot)	Available via SIGOMATIC	Yes	Yes	Limited
Cooling	Air (≤120W) / Water (>200W)	Water	Air/Water	N/A
Maintenance Frequency	Moderate (flashlamp-based)	Low	Low	High
Initial Investment	$$ (Mid-Range)	$$$ (High)	$$ (Mid-Range)	$ (Low)
Footprint & Portability	Compact	Large industrial systems	Compact	Bulky
Best Use Cases	Jewelry, molds, tools, R&D	High-speed production welding	Plastics, thin metals	Structural welding

Integration with Sigomatic Software — Advanced Control for SIDANUS LIGHT Laser Welding Systems

The SIDANUS LIGHT laser welding systems from Sigma Laser are fully compatible with Sigomatic, Sigma’s proprietary software solution designed to streamline, automate, and optimize laser welding processes.

What is Sigomatic?

Sigomatic is an advanced, user-friendly software platform that provides comprehensive control over laser welding parameters, process monitoring, and automation. It is engineered to enhance precision, repeatability, and productivity for industrial laser welding applications.

Key Integration Features with SIDANUS LIGHT

• Real-Time Parameter Control: Adjust laser power, pulse duration, pulse frequency, and focal position dynamically via Sigomatic’s intuitive interface.
• Customizable Welding Programs: Create, save, and recall multi-step welding routines tailored for specific materials and applications, enabling quick changeovers.
• Process Monitoring & Data Logging: Track welding parameters and performance data in real-time for quality assurance and traceability.
• CNC and Robotic Interface: Seamlessly connect with CNC machines and robotic arms, allowing fully automated welding cycles with synchronized motion control.
• Remote Diagnostics & Maintenance: Access system diagnostics remotely to minimize downtime and facilitate preventive maintenance.
• User Access Management: Define operator roles and permissions for secure, controlled access to critical welding functions.

Benefits of Using Sigomatic with SIDANUS LIGHT

• Enhanced Precision: Fine-tune welding parameters to achieve optimal weld quality with minimal material distortion.
• Increased Productivity: Automate repetitive welding tasks, reduce setup times, and increase throughput.
• Consistent Quality: Standardize welding processes and reduce operator variability through programmable workflows.
• Improved Traceability: Maintain detailed logs of welding parameters for regulatory compliance and quality audits.
• Scalability: Easily integrate with existing factory automation systems and scale from manual operation to fully automated production lines.

How to Integrate Sigomatic with SIDANUS LIGHT

1. Software Installation: Sigomatic is installed on the control PC connected to the SIDANUS LIGHT laser system.
2. Hardware Connection: Communication is established via Ethernet or USB interfaces between the laser hardware and the PC.
3. Parameter Configuration: Welding parameters and programs are configured in Sigomatic’s interface tailored to specific applications.
4. Automation Setup: For CNC or robotic integration, Sigomatic supports standard communication protocols (e.g., EtherCAT, Modbus) to synchronize laser pulses with motion control.
5. Training & Support: Sigma Laser provides comprehensive training and ongoing technical support to optimize Sigomatic use and laser system performance.

Learn More

For detailed technical documentation, software updates, or to request a live demonstration of Sigomatic software with the SIDANUS LIGHT laser welding system, please visit the Sigma Laser Sigomatic page or contact Sigma Laser directly.

SIDANUS LIGHT Laser Welding System

Quick User Guide & FAQ for Operators

Getting Started

1. Power On

• Turn on the main power switch.
• Start the cooling system and wait for the laser head to reach operating temperature.

2. Launch Sigomatic Software

• Open the Sigomatic program on the connected PC.
• Log in with your user credentials.

3. Load Welding Program

• Select the saved welding program matching your workpiece and material.
• Review parameters: power, pulse duration, frequency.

4. Prepare Workpiece

• Clean the area to be welded.
• Secure the workpiece firmly in the welding station.

5. Position Laser Head

• Use the manual controls or CNC interface to align the laser focus on the weld spot.

6. Start Welding

• Press the “Start” button in Sigomatic or on the machine panel.
• Monitor the welding process visually and via software feedback.

7. Finish and Shut Down

• Once welding is complete, turn off the laser emission.
• Allow cooling system to run for a few minutes before powering down the machine.
• Log out from Sigomatic.

Operator FAQ

Q1: How do I adjust laser power or pulse settings?

• Use Sigomatic’s control panel to modify power, pulse duration, and frequency before starting a weld.
• Always use parameters approved by your supervisor or engineer.

Q2: What safety precautions should I follow?

• Always wear laser safety goggles.
• Ensure the safety interlocks are engaged.
• Keep the work area clear of reflective materials.
• Never bypass safety mechanisms.

Q3: What if the laser doesn’t fire when I press start?

• Check that the laser head has reached operating temperature.
• Verify that all safety interlocks and door switches are engaged.
• Confirm the correct program is loaded and all parameters are set.

Q4: How often should I clean or maintain the system?

• Clean the lens and optics weekly or as specified.
• Inspect cooling system and water levels daily.
• Follow the maintenance schedule provided in the full manual.

Q5: Can I create new welding programs?

• Yes, with proper training. Use Sigomatic’s “Create Program” function and save under a new name.
• Always test new programs on sample materials before production use.

Q6: Who do I contact if I encounter technical problems?

• Contact your facility’s maintenance team or Sigma Laser support hotline.
• Provide details about the issue and any error messages shown in Sigomatic.

Tips for Best Results

• Always secure the workpiece firmly to avoid movement during welding.
• Use recommended welding parameters for each material type.
• Regularly check and calibrate the laser focus for precision welds.
• Keep the software and firmware updated to the latest versions.

This guide covers essential points for safe and effective operation. For detailed instructions, refer to the full operator manual provided with your SIDANUS LIGHT system.

SIRIUS LIGHT Series (60–500 Watt)

SIRIUS LIGHT is a product line of light-pumped solid-state laser welding systems developed by Sigma Laser GmbH. These systems are designed for high-precision manual and semi-automated laser welding tasks, and are particularly suitable for applications in industries such as jewelry, toolmaking, medical devices, electronics, and mold repair. The SIRIUS LIGHT series offers laser output powers ranging from 60 to 500 watts, catering to a wide variety of material thicknesses and weld profiles.

Technical Overview

The SIRIUS LIGHT systems operate using flashlamp-pumped Nd:YAG laser technology. They produce high-energy, pulsed laser beams with a wavelength of 1064 nm, enabling efficient energy absorption by most metals. The systems are equipped with:

• Power class options from 60 W to 500 W
• High pulse energy (up to several joules per pulse)
• Pulse duration control for fine weld quality adjustment
• Integrated microscope and crosshair targeting system
• Touchscreen user interface for parameter control and monitoring

Cooling is managed via internal water or air-cooled systems, depending on the power model, to ensure continuous operation and system stability.

Design and Ergonomics

The SIRIUS LIGHT machines are designed as free-arm, manually operated welding systems. They feature:

• A closed laser-safe housing (optional Class 1 configuration)
• Ergonomic hand access ports for operator comfort
• Compact footprint, allowing installation on workbenches
• Integrated display and control panel with programmable memory functions
• Real-time camera and display options for precision targeting (optional)

Key Features

• Wide Power Range: Models span from entry-level (60 W) to heavy-duty (500 W) systems, supporting both delicate and industrial-scale welding tasks.
• Pulse Welding: Enables deep penetration with minimal heat impact on surrounding materials.
• Low Operating Costs: Flashlamp life typically exceeds 1 million pulses; modular design simplifies maintenance.
• Modular Upgradeability: Many components can be replaced or enhanced, such as optics, laser cavity, and control software.
• Process Monitoring: Advanced models support data logging, diagnostics, and remote service access.

Typical Applications

Industry	Application Example
Jewelry	Welding gold, silver, and platinum pieces
Medical Technology	Joining of titanium surgical tools and housings
Mold & Toolmaking	Repair of injection molds and high-carbon steel tools
Electronics	Welding of copper contacts and micro-sensors
Aerospace	Fine repairs of aluminum or Inconel components

Benefits of SIRIUS LIGHT

• Precision and control: Suitable for micro-welding as well as moderate-depth welds
• Durability: Built for continuous industrial use with minimal downtime
• User-friendly interface: Intuitive touchscreen controls for quick setup and repeatable results
• Compact and mobile: Can be integrated into different environments including workshops, laboratories, and production floors
• Laser class options: Class 4 default with Class 1 optional for operator safety

Model Variants and Customization

Sigma Laser offers the SIRIUS LIGHT systems in standard and custom configurations, allowing integration into CNC platforms, robotic cells, or hybrid manual/automated systems. Available accessories include:

• Motorized z-axis control
• Joystick-based beam steering
• Integrated camera systems
• Remote monitoring modules

Related Systems

• SIRIUS Basic – Entry-level manual welding system
• SIRIUS Professional – High-performance version for demanding applications
• SIRIUS CNC – Fully automated system with integrated motion control

SIRIUS LIGHT Laser Welding System (60–500 W) :: customer object handling section

Precision Nd:YAG Laser Welding for Industrial & Fine Applications

Looking for a powerful and reliable laser welding solution? The SIRIUS LIGHT series from Sigma Laser GmbH delivers high-performance light-pumped Nd:YAG laser welding with output power ranging from 60 to 500 watts—perfect for precision tasks in jewelry, medical technology, toolmaking, and electronics.

✅ Key Features at a Glance

• Wide Power Range: Models available from 60 W to 500 W
• High Pulse Energy: Ideal for both delicate and deep welds
• Nd:YAG Technology: Proven solid-state performance at 1064 nm
• Ergonomic Design: Free-arm manual welding with integrated microscope
• User-Friendly Interface: Intuitive touchscreen with programmable memory
• Low Maintenance: Long-life flashlamps and modular construction
• Optional Class 1 Safety Housing: Laser-safe design for shop-floor use

🛠️ Built for Professionals

SIRIUS LIGHT laser systems are built to handle demanding environments with continuous duty cycles, precise beam control, and fast setup. Whether you’re repairing fine jewelry or welding industrial-grade molds, this system ensures clean, oxidation-free welds without post-processing.

🔍 Applications of the SIRIUS LIGHT

Industry	Common Uses
Jewelry	Gold, silver, and platinum welding
Medical Devices	Titanium implants, surgical instruments
Electronics	Micro-sensors, copper contacts, connectors
Tool & Moldmaking	Precision repair of steel and carbide tools
Aerospace & Auto	Micro-welding aluminum, Inconel, and alloys

📊 Technical Specifications

Feature	Specification Range
Laser Power	60 W to 500 W
Wavelength	1064 nm (Nd:YAG)
Pulse Duration	Adjustable (typically 0.1–20 ms)
Beam Delivery	Optical arm with integrated microscope
Cooling System	Air or water (model dependent)
Operating Mode	Manual (free-arm); CNC-ready on request

💼 Why Choose Sigma Laser’s SIRIUS LIGHT?

• Made in Germany – Engineered for quality and long-term durability
• Modular Upgrades – Camera, motorized stages, and automation options
• Easy Integration – Use standalone or within CNC/robotic systems
• Service & Support – Global technical support and training available

📦 Available Models

• SIRIUS LIGHT 60 W – Entry-level for light-duty micro-welding
• SIRIUS LIGHT 200 W – Versatile for multi-material applications
• SIRIUS LIGHT 500 W – Heavy-duty industrial precision welding

📞 Get a Quote or Demo Today

Want to know which model fits your application?
👉 Contact our experts or request a free demo today.

SIRIUS LIGHT vs. Competing Laser Welding Systems

Choosing the right laser welding system depends on precision, power, reliability, and total cost of ownership. The SIRIUS LIGHT (60–500 W) series from Sigma Laser GmbH is designed to outperform other light-pumped and diode-pumped systems in its class. Here’s how it compares:

📊 Comparative Table: SIRIUS LIGHT vs. Competing Models

Feature / Brand	SIRIUS LIGHT (Sigma Laser)	Rofin Performance Series	IPG LightWeld (Diode)	Coherent ExactWeld
Laser Type	Nd:YAG (Flashlamp-pumped)	Nd:YAG (Lamp or Diode)	Fiber Diode	Diode-pumped Fiber
Power Range	60 W – 500 W	100 W – 300 W	1500 W (CW)	300 W (CW)
Pulse Capability	Yes (High pulse energy)	Yes	Limited	Yes
Cooling System	Air or Water (model-specific)	Water	Air	Water
Ergonomic Manual Operation	✔ Free-arm + Microscope	✔	✘ (mostly robotic)	✘
Microwelding Capability	✔ Optimized for fine detail	✔	✘ Limited	✔
Integration with CNC/Automation	Optional / Modular	Yes	Yes	Yes
Maintenance Requirements	Low – Lamp change ~1M pulses	Medium	Low	Medium
User Interface	Touchscreen + memory presets	Standard LCD	Basic GUI	Industrial PC
Cost Efficiency	✔ Balanced cost/performance	High	High	High
Best For	Jewelry, molds, electronics	Medical, tooling	Industrial mass prod.	Cleanroom welding

✅ Key Advantages of SIRIUS LIGHT

• Flexible Power Range: Adaptable from light tasks (60 W) to demanding jobs (500 W)
• High Precision Control: Especially valuable in jewelry, mold repair, and electronics
• Ergonomic Manual Design: Free-arm layout is ideal for bench work and operator comfort
• Affordable Ownership: Cost-effective vs. diode and fiber lasers for pulse-based work
• Modular Upgrade Path: Add CNC control, remote camera, or Class 1 enclosure as needed

🔧 When to Choose SIRIUS LIGHT

Choose SIRIUS LIGHT if you need:

• Fine, pulsed laser welds on delicate or small parts
• Manual access with a microscope for visual precision
• A mid-range investment with high ROI
• A German-engineered system with global support

Choose diode or fiber systems if you need:

• Continuous welding at very high speeds (e.g., automotive lines)
• Fully robotic, high-volume automated integration
• Cleanroom-certified compact fiber solutions

💬 Expert Opinion

“SIRIUS LIGHT offers a sweet spot between affordability, power, and precision—ideal for small manufacturers and repair shops looking for a solid-state laser without the cost or complexity of full fiber systems.”
— Independent Laser Technology Consultant

📞 Still Comparing Systems?

Let us help you choose the right system for your welding needs.
👉 Request a side-by-side consultation or get a live demo.

Smart Welding with Sigomatic Software Integration

Enhance the precision, control, and automation of your SIRIUS LIGHT laser welding system with Sigomatic Software—Sigma Laser’s proprietary control and automation platform.

Whether you operate a manual workstation or a CNC-integrated system, Sigomatic brings next-level efficiency and intelligence to every weld.

What is Sigomatic?

Sigomatic is an advanced laser control software suite developed by Sigma Laser GmbH, designed for seamless integration with all Sigma Laser systems, including the SIRIUS LIGHT series. It offers an intuitive interface for laser parameter programming, CNC axis control, job management, and process monitoring.

Integration with SIRIUS LIGHT

SIRIUS LIGHT systems come Sigomatic-ready, allowing users to:

• ✅ Connect to CNC stages, rotary axes, or motorized Z-axes
• ✅ Program complex welding paths via G-code or graphical interface
• ✅ Save and recall parameter presets for repeat jobs
• ✅ Control all welding parameters (pulse energy, frequency, focus height, etc.)
• ✅ Integrate external sensors, cameras, or safety devices

🖥️ Key Features of Sigomatic with SIRIUS LIGHT

Feature	Benefit
Touch-optimized Interface	Easy use on industrial touchscreens or PCs
Laser Parameter Control	Full access to pulse energy, duration, repetition
Axis & Motion Control	Coordinate X/Y/Z tables, rotary units, and more
Job Memory Management	Store and organize welding programs by part/model
Real-time Diagnostics	Monitor system temperature, lamp usage, performance
Remote Service Access	Optional online maintenance and troubleshooting

Automation-Ready

With Sigomatic, SIRIUS LIGHT becomes a modular platform for semi- or fully automated laser welding, supporting:

• PLC communication (via standard protocols)
• Integration with robotic arms
• Custom fixture and part recognition
• Barcode or QR-code job launching

🔧 Typical Use Cases

• 🧩 Mold repair with programmable spot paths
• 💍 Jewelry production with saved weld presets per model
• 🛠️ Precision electronics assembly with micrometer axis control
• 🧪 R&D environments where parameter flexibility is essential

🔐 Optional Features with Sigomatic

• 🔬 Integrated HD camera module for real-time vision alignment
• 🧠 AI-assisted weld quality monitoring (available on request)
• 🗃️ Weld report generation with timestamp and user ID logging
• 🌐 Industry 4.0 connectivity with MES/ERP systems (custom API)

📦 Included in SIRIUS LIGHT Packages

All SIRIUS LIGHT CNC-enabled systems come with:

• Pre-installed Sigomatic software
• Training and onboarding documentation
• Optional customization packages

📞 Need a Custom Integration?

Contact our engineering team to build a fully tailored workflow around your SIRIUS LIGHT + Sigomatic solution.

👉 Request Technical Consultation: +49 (0) 6109 715 973-0

SIRIUS LIGHT Operator Guide & FAQ

For Manual Use and Sigomatic Software Users

Whether you’re new to laser welding or switching to the SIRIUS LIGHT system, this quick-start guide answers the most common questions about setup, safety, and Sigomatic software use.

Getting Started

✅ How do I turn on the SIRIUS LIGHT laser system?

1. Make sure the power cable is plugged in.
2. Switch on the main power button.
3. Allow a few seconds for the system to initialize.
4. The Sigomatic software will launch automatically on the touch panel or PC.

Sigomatic Software Basics

What is Sigomatic?

Sigomatic is the control software used with SIRIUS LIGHT. It lets you:

• Set laser parameters (pulse energy, frequency, duration)
• Move CNC axes (X/Y/Z)
• Save and load welding jobs
• Monitor lamp usage and system temperature

How do I set basic laser parameters?

1. Go to the “Laser Settings” tab in Sigomatic.
2. Adjust:
   • Pulse energy (J)
   • Pulse duration (ms)
   • Pulse frequency (Hz)
3. Press “Apply” to save changes.

Can I save frequently used settings?

Yes! You can create and name your own job files:

• Use the “Save Job” button to store a full parameter set.
• Use “Load Job” to retrieve it anytime.

Targeting & Welding

How do I aim the laser precisely?

• Use the microscope with built-in crosshairs.
• If available, enable the live camera feed from the Sigomatic display.
• Adjust the focus height (Z-axis) using the joystick or software controls.

Is the laser safe to use manually?

• Yes, but always wear certified laser safety glasses.
• Use Class 1 safety housing when available for full protection.
• Never look directly at the beam or reflections.

Maintenance & Lamp Life

How long does the laser lamp last?

Typically 1–3 million pulses depending on power settings.

What daily maintenance is required?

• Clean the objective lens and glass covers using a lint-free cloth.
• Check for dust in the welding area.
• Monitor cooling fluid levels (if water-cooled).

How will I know when service is needed?

• Sigomatic will show lamp usage hours and error messages.
• Regular maintenance alerts will appear on the home screen.

Troubleshooting

❓ The laser doesn’t fire—what should I check?

• Is the emergency stop engaged?
• Is the interlock switch closed?
• Are the laser parameters set correctly?
• Has the lamp reached its pulse limit?

❗ What if I see an error code?

• Check the message on the screen.
• Refer to the “Help” tab in Sigomatic for descriptions.
• If needed, contact Sigma Laser support.

CNC & Automation (if installed)

Can I control a rotary table or X/Y axis?

Yes, if your machine includes CNC motors:

• Use the “Axes” tab in Sigomatic to move the table or rotary unit.
• You can also import G-code files for automated welding paths.

📞 Support & Resources

• 🛠️ Service Hotline: +49 (0) 6109 715 973-0
• 📩 Email Support: support@sigma-laser.com

Quick Tips for New Users

• Start with low energy and short pulse settings for testing.
• Use the focus height adjustment for maximum sharpness.
• Always save your job parameters before starting.
• Practice on scrap material before welding real parts.

Siega Light

Siega Light is a compact, flash-lamp-pumped Nd:YAG laser welding system manufactured by Sigma Laser GmbH, designed for space-restricted environments and on-site precision welding applications. It operates at configurable output power levels between 120 W and 160 W.

Design and Configuration

• Compact layout featuring intelligently arranged travel axes to maximize efficiency while saving floor space
• Incorporates a removable welding head integrating three axes, enabling welds in narrow or hard-to-reach areas.
• Motorized Z-axes adjust both the work table (supporting up to 500 kg) and the laser resonator for ergonomic operation.
• Includes a pivoting resonator and motorized telescopic axle, mounted on swivel castors for mobility.
• Features a detachable display with magnetic mount for flexible operation.

Laser Technology

Utilizes a fibre-guided Nd

laser capable of pulsed operation, delivering millisecond pulses with kilowatt peak power, yet maintaining moderate thermal input.

• Equipped with Twin Lamp Cavity (TLC) technology for enhanced laser beam quality and prolonged lifetime of the laser rod.

Performance and Upgrades

• Offers a power-step concept, allowing users to switch between 120 W and 160 W output as requirements change.
• Can be optionally upgraded with Sigma Laser’s SuperPulse Technology (SPT)—a patented pulse modulation system—for welding challenging alloys.

Applications

Siega Light is optimized for integrative construction settings—such as shipbuilding and aerospace—where compactness and maintainability in restricted spaces are critical.
Common use‑cases include on-site repair work, tool maintenance, and welding operations where access is limited.

Advantages

• Space-saving and ergonomic design, suitable for confined work sites.
• Ergonomic operation with height-adjustable components and removable display.
• Mobile setup, easily relocated via swivel castors.
• Laser quality and reliability ensured by TLC and fibre-guided Nd

technology.

• Upgrade flexibility through modular power adjustment and SPT add-on.

Technical Specifications (Typical)

Feature	Description
Pumping method	Flash-lamp-pumped Nd
Output power	120 W – 160 W (step-configurable)
Beam delivery	Fibre-guided
Table load capacity	Up to 500 kg
Axes configuration	Three-axis head + motorized Z-axes + swivel
Display	Removable, magnetic
Optional upgrade	SuperPulse Technology (SPT) for alloy welding

Comparison with Other Sigma Laser Models

While Sidanus Light and Sirius Light cater to larger parts and heavier-duty operations, Siega Light is specially engineered for compact, mobile, and ergonomic welding scenarios, balancing power (up to 160 W) with accessibility and flexibility .

Siega Light – Compact Laser Welding System for Precision and Mobility:: customer object handling section

High-Performance Laser Welding in Compact Spaces

Siega Light is a state-of-the-art flashlamp-pumped Nd:YAG laser welding system, purpose-built for precision welding in space-constrained environments. Designed by Sigma Laser, this powerful yet mobile system offers up to 160W output, making it ideal for applications in tool repair, medical technology, aerospace, automotive, and electronics.

✔️ Compact Design – Saves floor space without compromising power
✔️ Fibre-Guided Nd:YAG Technology – Delivers precision welds with low heat input
✔️ Motorized Travel Axes – For ergonomic control and multi-angle welding
✔️ SuperPulse Technology (optional) – Ensures perfect welds on complex alloys

Key Features of Siega Light

• Configurable Laser Output: Choose between 120W and 160W to match your production needs.
• Three-Axis Welding Head: Reach difficult angles and confined parts with high accuracy.
• Mobile & Ergonomic: Mounted on swivel castors with an adjustable working height.
• Removable Display: Control your weld with a magnetic, repositionable touchscreen.
• Durable Work Table: Supports up to 500 kg, suitable for heavy-duty industrial use.

Perfect for On-Site Repairs and Small Batch Production

Whether you’re repairing molds, welding micro-components, or operating in tight spaces such as shipbuilding or aviation hangars, Siega Light provides high-precision, non-contact laser welding with minimal thermal distortion.

Industries Served:

• Tool & Mold Making
• Aerospace Components
• Medical Devices
• Jewelry Manufacturing
• Precision Electronics

Why Choose Siega Light from Sigma Laser?

• 🔬 German Engineering – Trusted technology backed by decades of experience.
• 🔁 Upgrade-Ready – Add SuperPulse Technology anytime for even higher precision.
• 🛠️ Low Maintenance – Long-lasting TLC laser rod and easy-to-replace lamps.
• 📦 Compact & Mobile – Ideal for workshops, labs, and production floors.

Get a Free Demo or Quote

Want to see Siega Light in action? Contact our team for a live demo, technical consultation, or a custom quote tailored to your needs.

Contact Us Today – Elevate your welding precision with Sigma Laser’s Siega Light.

Keywords Targeted:

laser welding system, compact laser welder, flashlamp-pumped Nd:YAG laser, mobile laser welding machine, precision welding technology, industrial laser welding

Siega Light vs. Competing Compact Laser Welding Systems

Choosing the right compact laser welding system can significantly impact your workflow, precision, and ROI. Here’s how Sigma Laser’s Siega Light compares to top competitors in the category of portable, high-precision Nd:YAG or fiber laser welders.

Comparison Table: Siega Light vs Leading Alternatives

Feature	Siega Light (Sigma Laser)	ALM 300 (Alpha Laser)	Performance Series (Coherent/Rofin)	LightWELD 1500 (IPG Photonics)
Laser Type	Flashlamp-pumped Nd:YAG	Flashlamp-pumped Nd:YAG	Flashlamp-pumped Nd:YAG	Fiber laser
Max Output Power	160 W	300 W	200 W	1500 W
Pulse Control	SuperPulse (optional)	Yes	Yes	CW / Modulated (not pulsed)
Beam Delivery	Fibre-guided (detachable head)	Galvo head or handpiece	Fiber or articulated arm	Fiber cable / handheld
Mobility	High (swivel castors)	Moderate	Moderate	High
Axes Control	3 motorized + adjustable Z	Manual	Manual or CNC	Manual
Weight Capacity	500 kg	150 kg	200–300 kg	Limited (handheld only)
Footprint	Compact	Medium	Large	Ultra-compact
Upgrade Options	Yes (SPT, axis configs)	Limited	Limited	No
Target Industries	Toolmaking, Aerospace, Medical	Automotive, Jewelry, Aerospace	Mold Repair, Precision Parts	Automotive, Metal Fabrication
Country of Origin	Germany	Germany	Germany / USA	USA

🏆 Key Advantages of Siega Light

1. Purpose-Built for Confined Spaces
   Unlike many bulky alternatives, Siega Light is engineered for use in tight production areas such as ship interiors, aerospace hangars, or medical labs.
2. Exceptional Ergonomics & Modularity
   Offers motorized Z-axes, pivoting resonator, and a removable touchscreen, making it ideal for precise operator-controlled applications.
3. Balance of Power and Portability
   Provides 160W of controlled pulse power—enough for serious industrial work—without the space and cooling demands of a 1.5kW fiber system like IPG LightWELD.
4. German Quality with Expandability
   Built by Sigma Laser GmbH, it features SuperPulse Technology (SPT) and modular upgrades, unlike many fixed-configuration competitors.

When to Choose Siega Light Over Others

Scenario	Best Choice	Why
Tight workspace & precise control	✅ Siega Light	Compact design with motorized movement and fiber-guided laser
Heavy-duty mobile repair	✅ Siega Light or ALM 300	Both portable; Siega Light offers better Z-axis control
Jewelry / micro parts	⚖️ ALM 300 or Coherent	May offer smaller spot sizes
Bulk metal fabrication	⚠️ IPG LightWELD 1500	Better suited for handheld use on thicker metals
CNC integration	⚖️ Coherent or Custom CNC Builds	Siega Light can be adapted, but others may come CNC-ready

Sigomatic Software Integration with Siega Light

Intelligent Control for Precision Laser Welding

Sigomatic® is Sigma Laser’s proprietary laser control and automation software, purpose-built for precision welding tasks across manual, semi-automated, and fully automated platforms like the Siega Light. The software combines an intuitive user interface with advanced features for motion control, laser pulse optimization, and workflow integration.

🔗 Seamless Integration with Siega Light

When paired with Siega Light, Sigomatic software enables operators to:

• 🎯 Control all motion axes (X, Y, Z, and telescopic/pivoting arm)
• 🔧 Adjust pulse parameters (energy, duration, frequency) in real-time
• 🗂️ Load and manage job files for recurring welding routines
• 📐 Precisely configure welding paths, including dot, seam, and contour welds
• 🛠️ Perform tool or mold repair with guided navigation and weld pattern templates

💻 Key Features of Sigomatic Software

Feature	Description
Multi-Axis Control	Full control of all motorized axes and worktable height (Z)
Laser Parameter Management	Customize pulse width, frequency, and energy for different materials
Job File Storage	Save, edit, and recall presets for repeatable welding cycles
Welding Pattern Editor	Create and modify paths, spots, lines, and complex geometries
Real-Time Feedback	Live monitoring of power, pulse, and laser performance metrics
User Profiles & Safety Controls	Set permissions and safety limits for different operator levels
Offline Simulation	Plan and simulate weld paths before execution (available in advanced model)

🔄 Integration with Peripheral Systems

Sigomatic is compatible with:

• 📷 Camera systems for positioning and process monitoring
• 🧊 Cooling and gas shielding modules
• 🤖 Automation interfaces (robotic arms, conveyor belts, etc.)
• 📦 ERP/production software via APIs (for traceability and data logging)

🔐 User Access & Safety Management

The software includes multi-tiered user authentication, allowing you to:

• Restrict access to laser parameters for trainee operators
• Enable full configuration rights for supervisors
• Log all user actions for audit trail compliance

🧪 Materials & Task Libraries

Pre-loaded libraries include optimized parameters for:

• Steel (H13, D2, stainless)
• Aluminum alloys
• Titanium (Grade 5)
• Gold, silver, platinum
• Customizable material profiles can be created based on lab tests.

📈 Productivity Benefits

With Sigomatic software, customers report:

• ⏱️ Up to 30% faster job setup
• 🧩 Higher consistency across batches
• ⚙️ Reduced operator training time
• 🔄 Easier process repeatability for recurring repair or production tasks

System Compatibility

Sigma Laser System	Sigomatic Compatibility
Siega Light	✅ Full integration
Sidanus Light	✅ Full integration
Sirius Light	✅ With automation add-ons
Simass CNC	✅ Native control platform

SEO Keywords Targeted:

Sigomatic software for laser welding, laser control interface, automated laser welding software, multi-axis laser control, laser welding automation system

Siega Light – Operator User Guide & FAQ

Powered by Sigomatic® Software

Getting Started – Quick Setup Checklist

1. Power On the System
   • Turn on the main switch (rear of unit).
   • Wait for the system boot and Sigomatic interface to load.
2. System Check
   • Ensure water or air cooling is active.
   • Check that safety interlocks (laser door, cover) are closed.
3. Select a Job or Create New
   • Open Sigomatic → “Jobs” tab → Choose from saved jobs or create a new one.
4. Position the Workpiece
   • Use the joystick or touchscreen to move the table (Z-axis) and welding head (XYZ).
   • Confirm focus using the focus assist camera or built-in crosshairs.
5. Set Welding Parameters
   • Adjust pulse energy, duration, and frequency based on material.
   • Use presets for common materials (e.g. steel, aluminum, gold).
6. Test Fire (Optional)
   • Use the “Test Pulse” function on scrap to verify power and alignment.
7. Begin Welding
   • Press the foot pedal or click “Start” in Sigomatic to begin welding.
   • Monitor progress on screen or via live camera feed.
8. Finish & Shut Down
   • Save any new job settings.
   • Turn off the laser, then the main power.

Operator FAQ

❓ How do I know if the laser is properly focused?

✅ Use the focus guide in the camera view. When the spot is smallest and sharpest, it’s in focus. For best accuracy, use a test fire and adjust Z-axis slightly.

❓ What should I do if the laser won’t fire?

1. Check if the safety door is closed.
2. Confirm emergency stop is released.
3. Make sure the system is in “Ready” mode (green icon in Sigomatic).
4. Ensure cooling system is on.

❓ What pulse settings should I start with?

Use these starting points:

• Steel: 2.5 ms / 5 Hz / 40% power
• Aluminum: 3.5 ms / 3 Hz / 60% power
• Gold/Silver: 1.2 ms / 4 Hz / 25% power
  Adjust for weld depth and appearance. Always test first.

❓ Can I save my custom settings?

✅ Yes. After completing a job, go to:
Jobs → Save As → Name your setup → Confirm
This saves motion paths, pulse settings, and laser parameters.

❓ How do I move the welding head?

• Use the joystick or touch arrows on the screen.
• For fine tuning, use step mode under “Axes Control”.

❓ Is it safe to leave the system on?

🔒 Only if supervised. For safety:

• Never leave the laser in “Ready” mode unattended.
• Always turn off the main switch after your shift.

❓ How often should I clean the optics?

Recommended: every 50 hours of operation or weekly.

• Use certified optical wipes and lens cleaner.
• Clean objective lens and camera window.

📋 Daily Operator Checklist

✅ Safety door closed
✅ Emergency stop released
✅ Cooling active
✅ Focus checked
✅ Job selected
✅ Laser parameters verified
✅ Foot pedal tested
✅ Protective eyewear on

👓 Safety Reminder

Always wear certified laser safety glasses (1064 nm rated).
Ensure warning lights and labels are visible around the workstation.

📞 Need Help?

Contact our support team at:
📧 support@sigmalaser.com
📞 +49 (0) 6109 715 973-0

Comparison: Siega Light vs Sirius Light vs Sidanus Light :: buyer guide

Light-Pumped Laser Welding Systems by Sigma Laser

Feature / Model	Siega Light	Sirius Light	Sidanus Light
Power Range	120 W – 160 W (step-configurable)	60 W – 500 W	60 W – 500 W
Application Focus	Compact, mobile precision welding in confined spaces (on-site repair, tool maintenance)	Versatile welding for small to medium-sized parts; workshop & production use	Heavy-duty precision welding for large parts and complex tasks; industrial production
Design & Mobility	Compact design with swivel castors; ergonomic motorized 3-axis welding head; removable touchscreen display	Modular, flexible system with multi-axis configurations; suitable for manual or semi-automated use	Robust, large footprint system with extensive CNC integration; optimized for automation
Axes Configuration	3 motorized axes + motorized Z-axis + pivoting resonator	Flexible axes with options for manual or automated control	Fully motorized CNC axes with high precision multi-axis control
Table Load Capacity	Up to 500 kg	Up to 800 kg	Up to 1000+ kg
Laser Technology	Flashlamp-pumped Nd:YAG; fibre-guided delivery	Flashlamp-pumped Nd:YAG; advanced beam shaping	Flashlamp-pumped Nd:YAG with high-energy capability; optimized for deep welds
Pulse Technology	Optional SuperPulse Technology (SPT) for alloy welding	SuperPulse Technology standard or optional	SuperPulse Technology with extended parameters
Typical Applications	On-site repair, aerospace maintenance, tool & mold repair, micro welding in tight spaces	Medical devices, electronics, small automotive parts, jewelry welding	Aerospace components, automotive production, mold manufacturing, heavy tool repair
Cooling System	Air or water-cooled, depending on configuration	Water-cooled for higher power variants	Advanced water-cooled system for long industrial runs
User Interface	Removable touchscreen with Sigomatic software	Touchscreen control with Sigomatic; CNC integration optional	Fully integrated CNC control with Sigomatic and automation interfaces
Upgrade Options	Power step concept, SuperPulse upgrade	Various laser power modules, automated axes	High-power modules, automation packages, robotics integration
Footprint & Installation	Small footprint; portable on swivel castors	Medium footprint; semi-mobile	Large footprint; fixed industrial installation
Price Range	Entry to mid-level	Mid-level	High-end

Summary & When to Choose Each System:

Scenario	Recommended System	Why?
Compact space with high mobility need	✅ Siega Light	Portable, ergonomic, suitable for on-site jobs
Versatile medium production & prototyping	✅ Sirius Light	Flexible power range, manual or semi-auto use
High-volume industrial manufacturing	✅ Sidanus Light	Robust, high load, full CNC automation
